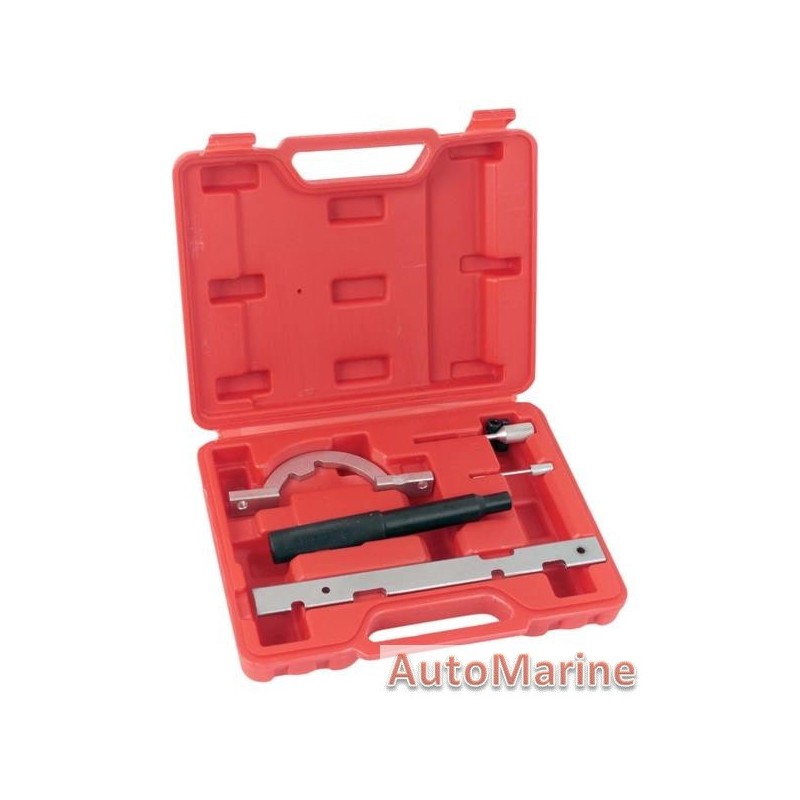

Timing Tool Kit Opel.Chev View larger

Timing Tool Kit Opel.Chev

TTK-OP02

New product

Camshaft and crankshaft, removal and assembly of fuel injection pumps and water pumps and changing the timing belt.

Suitable for identical engines in Saab, Renault etc.

Applications
Diesel: 1.3 CDTi 16V , 1.9 CDTi , 2.0 DTi , 2.2 DTi
Agila, Astra, Combo-C, Corsa, Frontera, Omega, Signum, Sintra, Tigra, Vectra, Zafira
Specifications
Highly polished steel
Hardened and tempered for maximum durability
Knurled ends
Supplied in blow moulded case


Petrol Engine Setting/Locking Kit - Vauxhall/Opel, Suzuki 1.0, 1.2, 1.4 - Chain Drive

Includes locking tools for 1.0, 1.2, 1.4 EcoTec/ecoFLEX (codes X and Z) chain engines.

Also includes the timing disc position gauge for the timing sensor on the inlet camshaft.

OEM(s): KM-952/09912-38310, KM-953/09919-58310, KM-954/09919-08310, KM-955/09919-58320, KM-6130

Application(s):
Suzuki: Wagon R (05-08)
Vauxhall/Opel: Agila (00-08), Astra-G (98-06), Astra G Classic II (03-10), Astra-H (04-11), Combo (04-12), Corsa-B (97-00), Corsa-C (00-07), Corsa-D (06-12), Meriva-A (04-10), Tigra-B (04-10)

Engine Codes:
1.0 12v: X10XE, Z10XE, Z10XEP
1.2 16v: X12XE, Z12XE, Z12XEP
1.4 16v/ecoFLEX: Z14XEL, Z14XEP

Diesel Engine Setting/Locking Kit - Alfa Romeo, Fiat, Ford, Lancia, Suzuki, Vauxhall/Opel 1.3D JTD(M)/TDCi/DDiS/CDTi 16v - Ch

Suitable for timing the camshaft and crankshaft, on chain drive 1.3 diesel engines.

Set also includes a tensioner locking pin.

OEM(s):
Alfa Romeo/Fiat/Lancia: 1.871.00.900
Citroen: 104-A, 0198-J
Ford: 303-1472
Peugeot: 104-A, 0198-J
Suzuki: 09912-38300, 09916-98610, 09917-68610
Vauxhall/Opel: EN-46781, EN-46785, KM-955

Application(s):
Alfa Romeo: MiTo (08-16)
Citroen: Nemo (10-16)
Fiat: 500 (07-16), Doblo/Cargo (04-10), Fiorino (08-16), Grande Punto (05-11), Idea (04-12), Linea (07-11), Panda (03-16), Punto (03-11), Punto Evo (09-14), Qubo (08-16)
Ford: Ka (09-15)
Lancia: Musa (04-13), Ypsilon (03-15)
Peugeot: Bipper (10-16)
Suzuki: Ignis (03-09), Splash (08-11), Swift (06-14), Wagon R+ (03-08)
Vauxhall/Opel: Agila (03-08), Agila-B (08-10), Astra-H (04-11), Astra-J (09-15), Combo-C (03-12), Corsa-C (03-12), Corsa-D (06-14), Meriva-A (04-10), Meriva-B (10-15), Tigra-B (04-10)

Engine Codes:
Alfa Romeo JTD Multijet: 199A3.000, 199B1.000
Citroen: F13DTE5 (FHZ)
Fiat JTD Multijet: 169A1.000, 188A8.000, 188A9.000, 199A2.000, 199A3.000, 199A9.000, 199B1.000, 199B2.000, 223A9.000
Ford TDCi: 169A1.000(FD4)
Lancia JTD Multijet: 188A9.000, 199A3.000, 199B1.000
Peugeot: (FHZ)F13DTE5
Suzuki DDiS: D13A, Z13DT, Z13DTJ, Z13DTJ Eco
Vauxhall/Opel CDTi: A13DTC, A13DTE, A13DTR, D13A, LDV/A13DTC, LSF/A13DTE, Y13DT, Y13DTH, Z13DT, Z13DTi, Z13DTH, Z13DTJ, Z13DTR

Diesel Engine Setting/Locking Kit - Vauxhall/Opel, Saab 1.9D CDTi/TiD/TTiD, 2.0D CDTi - Belt Drive

Suitable for timing belt replacement on Vauxhall/Opel and Saab vehicles fitted with 1.9D CDTi/TiD/TTiD or 2.0D CDTi engines.

Kit contains camshaft setting tools, crankshaft locking tool and tensioner pin.

OEM Tool(s): EN-46788/32 025 009, EN-46789, 32 025 008, KM-6349/87 92 335

Application(s):
Vauxhall/Opel: Astra-H (04-11), Astra-J (10-15), Cascada (13-15), Insignia (08-13), Signum (04-08), Vectra-C (04-08), Zafira-B (05-12), Zafira-C Tourer (11-15)
Saab: 9-3 (04-10), 9-5 (05-10)

Engine Codes:
1.9D CDTi: Z19DT, Z19DTH, Z19DTJ, Z19DTL
1.9D TiD: Z19DT, Z19DTH
1.9D TTiD: Z19DTR
1.9D XTTiD: A19DTR, Z19DTR
2.0D CDTi/ecoFLEX: LBQ/A20DTL, LBR/A20DT, LBS/A20DTH, LBX/A20DTJ, LBY/A20DTR, LCD/A20DTC
2.0D TiD: LBS/A20DTH
2.0D TTiD: LBY/A20DTR

VSE243 VSE5005 VSE5881A VSE5886A VSE5005 VSE5875

This product is no longer in stock

R 2,642
