Runva 24 Volt - 9500lb (4309kg)

Reference: EWX9500F-24

Condition: New product

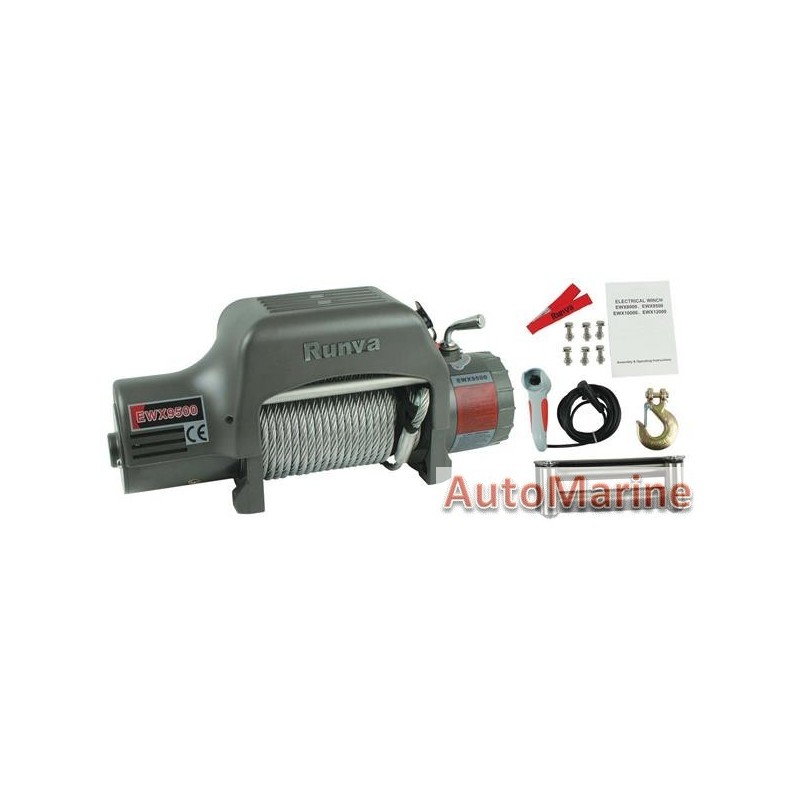

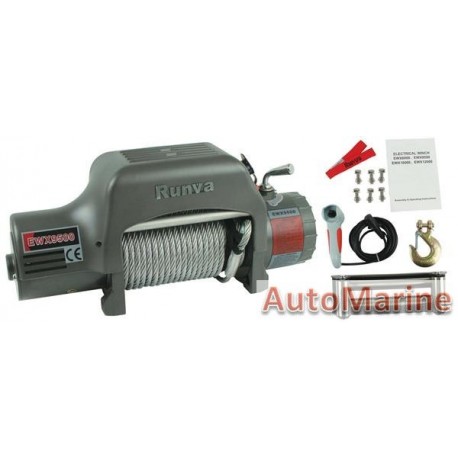

Runva 9500lb (4309kg) 24 Volt Electric Winch

Features:

Full steel gear
Runva patent three stage planetary gear reducer
Sliding geared ring clutch
Automatic screw cone braking action
Remote control through control box and switch
Wireless remote control available

More details

12 Item Items

In Stock

Write a review

Data sheet

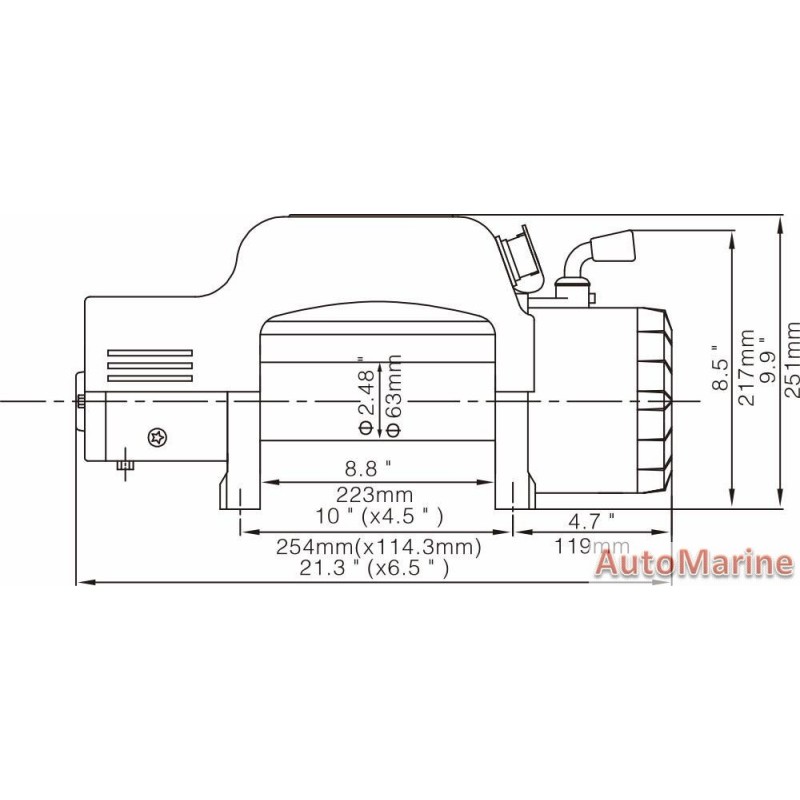

Length	540mm
Width	166mm
Height	251mm
Weight	39.2kg
Warranty	Limited Lifetime Mechanical Warranty. 5 Year Warranty on Electrical Components. No warranty on steel or synthetic rope.
Packaging Type	Box
Shipping Dimensions (L X B X H)	56cm X 45cm x 35cm
Shipping Weight	45

More info

Specifications

Rated line pull: 9500 lbs (4309 kg)
Motor: Series Wound - 24V:Input: 6.5kW / 8.7hp; Output: 2.8kW / 3.8hp
Gear reduction ratio: 230:1
Cable (Dia.× L): Ø3/8″×85 ‘ (Ø9.2mm×26m)
Drum size (Dia.× L): Ø2.48 “×8.8 ” (Ø63mm×223 mm)
Mounting bolt pattern: 10 “×4.5 ” (254mm×114.3 mm) 4-M10
