Runva 12 Volt - 9500lb (4309kg) Low Mounting with Synthetic Rope

Reference: EWB9500U-SR

Condition: New product

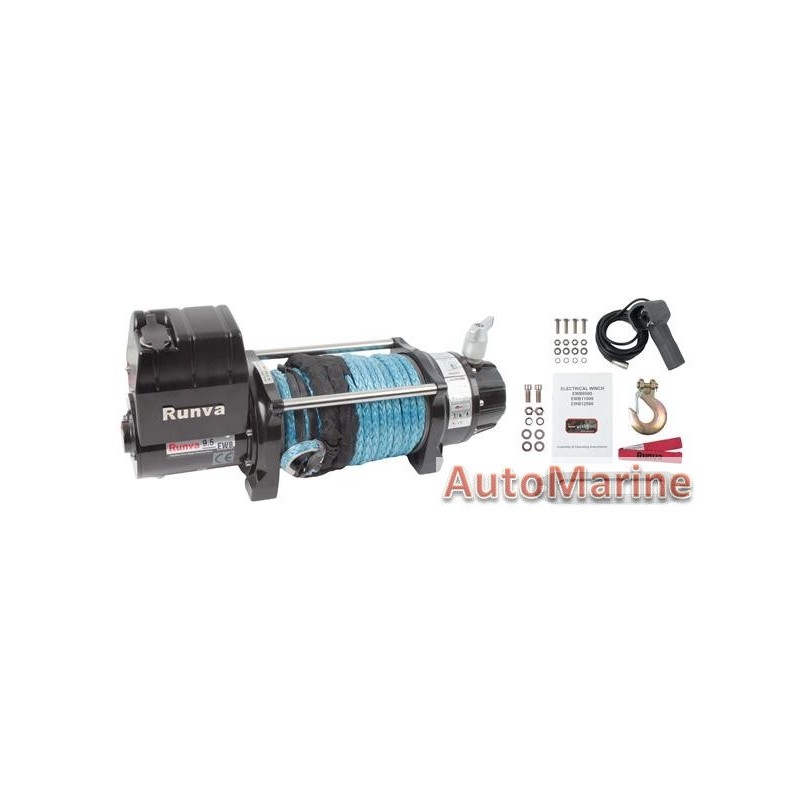

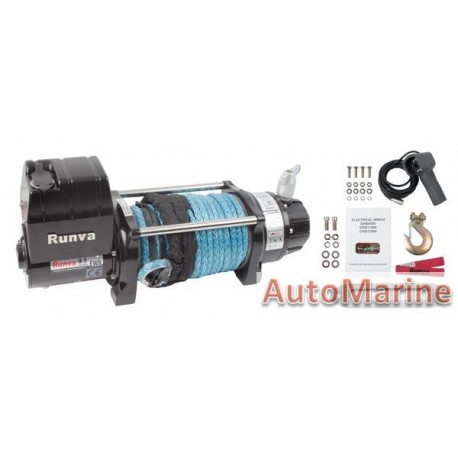

Runva 9500lb (4309kg) 12 Volt Electric Winch - Low Mounting - with synthetic rope.

Features:

All-new patented waterproof design meets IP67 standards
Innovative brake inside the gearbox, offers excellent safe, reliable performance
Stainless steel rotary clutch for smooth and convenient operation
Stainless steel out-installed screws

More details

3 Item Items

In Stock

Warning: Last items in stock!

Write a review

Data sheet

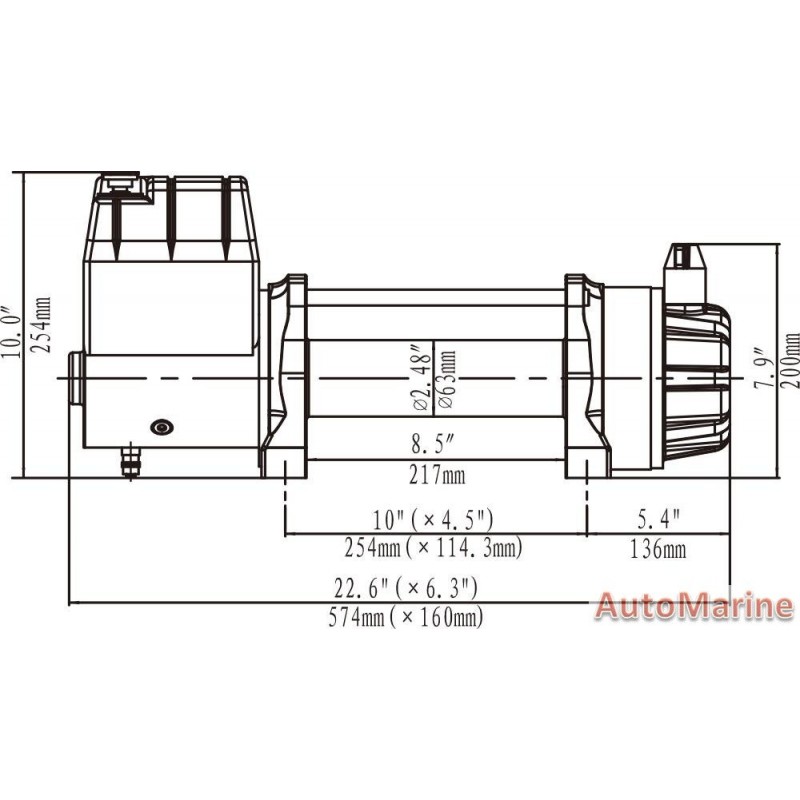

Length	574mm
Width	160mm
Height	248mm
Weight	39.5kg
Warranty	Limited Lifetime Mechanical Warranty. 5 Year Warranty on Electrical Components. No warranty on steel or synthetic rope.
Packaging Type	Box
Shipping Dimensions (L X B X H)	60cm X 45cm x 35cm
Shipping Weight	45

More info

Exclusive brake design inside gearbox prevents rope damage with the drum over-hot after long-time operation
Copper connection sealed control pack with elegant appearance
High-efficient transmission delivers 9m/min pull-in speed and power saving
Over-current protection available for safe winching
Compression-resisted rubber hand remote control

Specifications

Rated line pull: 9500 lbs (4309 kg)
Motor: Series Wound 12V (Input: 4.6kW / 6.1hp; Output: 2.1kW / 2.8hp)
Gear reduction ratio: 228:1
Cable (Dia.× L): Ø3/8″×85 ‘ (Ø9.2mm×26m)
Drum size (Dia.× L): Ø2.48 “×8.5 ” (Ø63mm×217mm)
Mounting bolt pattern: 10 “×4.5 ” (254mm×114.3 mm) 4-M10
